The envelope icon and alert tone indicate that there is a new message for the operator. Operators must open and read messages before they can delete them. The envelope icon provides information about the content of the messages.
Mail icons for Modern MDTs (Xenarc, for example)
New or unread messages exist in the Inbox. | |
All of the messages in the Inbox have been read by the operator. | |
There are no messages in the Inbox, but there are read messages in the History folder. |
Mail icons for Older MDTs (mSlate, for example)
New, unread messages exist in the Inbox. The message title has NOT been reviewed. | |
Unread messages exist in the Inbox or History folders. The operator reviewed the message title but did not open and read the full message. | |
Messages exist in the Inbox or History folder, and the operator has read them all. |
To display a message:
- Touch
in the menu bar.
- Touch
.
- Touch the message to read it.
- If necessary, reply as required.

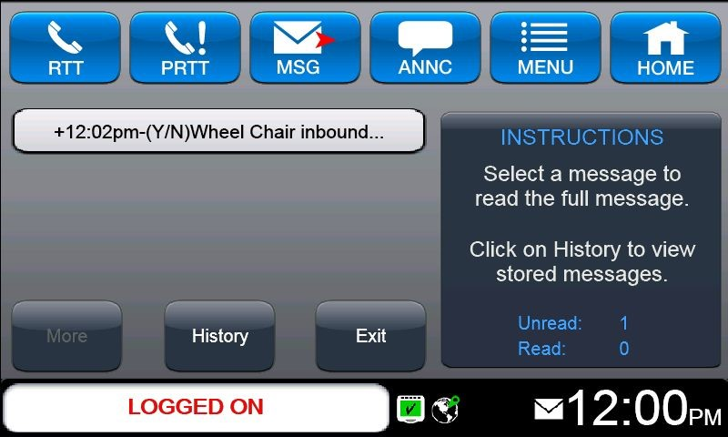

To display a message from the Home page:
- Touch
.
- Touch the message to read it, as shown below.
- If necessary, reply as required.
Informational messages do not require a response. The system tracks whether the message was received by the vehicle, but it gathers no further information.

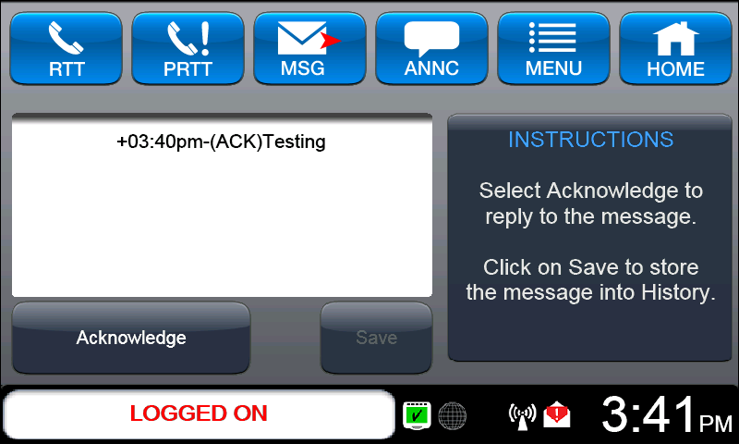

Acknowledgment messages require operators to indicate that they have read the message. The system tracks when the vehicle receives the message, and when the operator acknowledges reading the message.

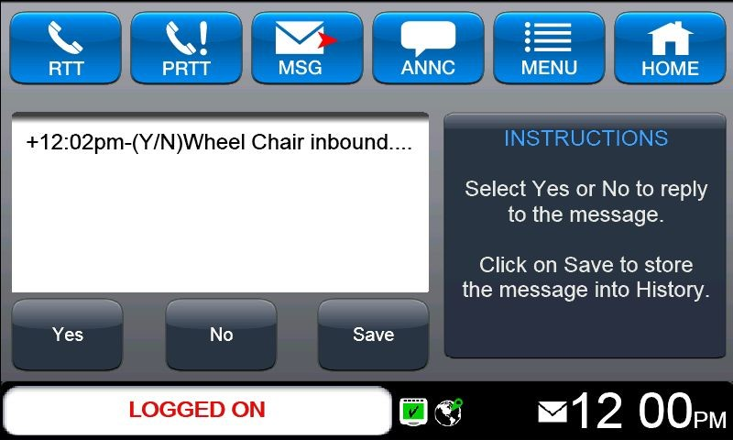

Other messages can require the operator to respond with a Yes or No. The system tracks when the vehicle received the message, whether the operator has replied, and how the operator replied.
The data messaging feature tracks the messages and responses, which prevents uncertainty about whether the operator received the message.
