Exceptions

  Navigation: ETMS > Planning & Scheduling > Exceptions

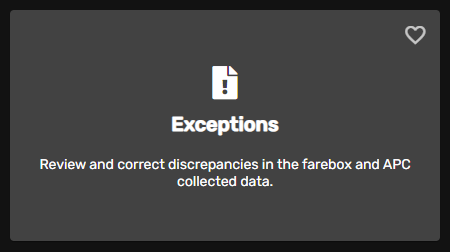

The Exceptions feature allows you to process exceptions in myAvail. If you have permission to process Exceptions, this card will be visible to you.

Exceptions are data from vehicles that do not conform with expected values. Passenger counters and the farebox generate these data. myAvail assigns ridership and fare data with the following values:

  • Operator ID
  • Block ID
  • Run ID
  • Route ID
  • Trip ID
  • Stop ID (when action occurs at a stop)

The system validates these values both individually and in relationship to each other when they are assigned to a single record. myAvail verifies that the stop is valid for the trip, the trip is valid for the run, and the run is valid for the block. If any of these validations do not pass, the record will be an Exception.

Accurately correcting these errors improves the accuracy of all future reporting.

TIP: Before you can process exceptions for a date, you must import the farebox data for that date. Most transit properties use the auto-import feature to ensure that this process occurs daily. For more information about importing farebox data, see the DataPoint User Guide.

Picking a Probe Date

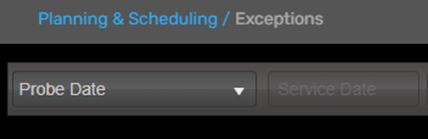

After opening the Exceptions card, the only item that you can select is the Probe Date drop-down list (pictured below). This list displays the probe dates that are ready for processing. You can only select the first date available. The system restricts choice in this case because it is crucial that you process exceptions in chronological order to produce valid data for myAvail’s Business Intelligence.

After you complete the processing for the first probe date, the system automatically selects the next available probe date for processing if multiple Probe Dates are available. If there are no exceptions in the system, myAvail prompts you to transfer data to the Farebox tables.

Selecting a Test

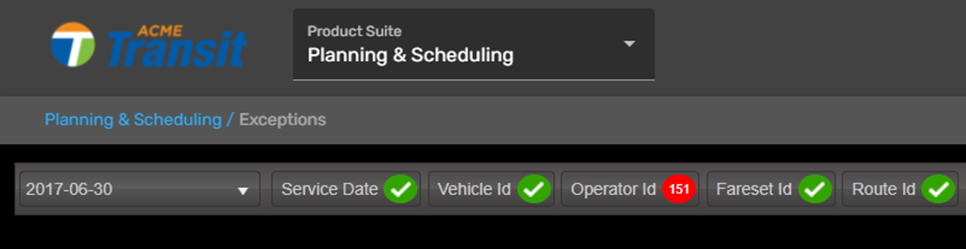

After you select a Probe Date, myAvail enables the test buttons. Green checkmarks identify tests that do not have any exceptions. A red circle with a number indicates that a test has that many exceptions. Click a test to begin correcting exceptions.

Correcting Exceptions

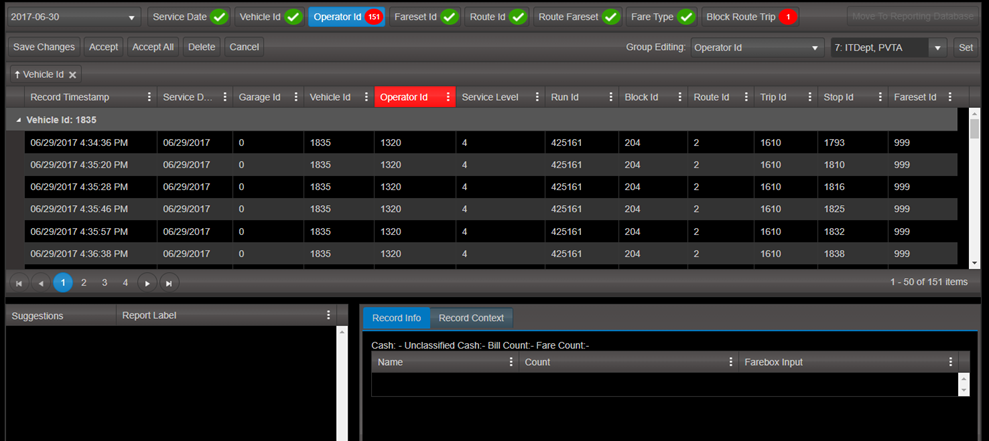

After you select a test, several grids appear. The large grid that fills the width of the page is the Exceptions Grid (pictured below). myAvail displays all the exceptions for a test in this grid, and it is where you make the corrections.

TIP: The Fare Type and Vehicle ID tests use slightly different Exceptions Grids that this guide covers later.
  • You can edit all columns in this grid except for Record Timestamp, Service Date (Sdate), and Vehicle Id. Edit a value by clicking it. After the editor is open, either choose a value from the drop-down list or type it All values in all drop-downs are sorted numerically for ease of use.
TIP: You cannot type in values that are not contained in the drop-down list.
  • Click the Cancel button at any time to discard your changes. Cancel can affect multiple rows
  • myAvail highlights columns in red when they encompass an exception for the current test. For example, in the above grid, myAvail highlights the Operator Id column. myAvail does not consider a record as being corrected until you modify one of these
  • After you correct all the records on a page, click the Save Changes button to save all of your If you corrected the value, the row will be removed from the exceptions list. If you accidentally update a row to a bad value and click Save Changes, then the row will stay on the screen for you to update again.
  • You should rarely use the Accept or Accept All buttons while processing exceptions. When you click Accept, the system takes that row ‘as is’ and will assign the incorrect schedule data to ‘undefined’ in reports. Also, if you click Accept, it ignores any corrections/updates that you make to the selected rows.
  • You can select multiple records by clicking and dragging on the grid, holding the CTRL key and clicking records, and by holding the SHIFT key and clicking two records to select all records between
  • If a driver enters an incorrect Driver ID# or Run ID# the system now will autocorrect these. This significantly reduces exceptions numbers during manual processing.
  • Processing of the APC exception data will be automatic and not apparent to the person processing the exceptions.

Editing Multiple Records

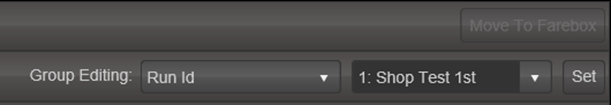

The Group Editing function of the Exceptions Grid allows you to edit multiple records simultaneously. It is located on the right side of the toolbar above the Exceptions Grid.

The first drop-down list in the Group Editor allows you to select the column of the Exceptions  Grid that you want to edit. The second drop-down list contains a list of valid IDs for that column. By default, the column that is being tested is selected. After an ID is chosen, the Set button modifies all selected records that contain that ID.

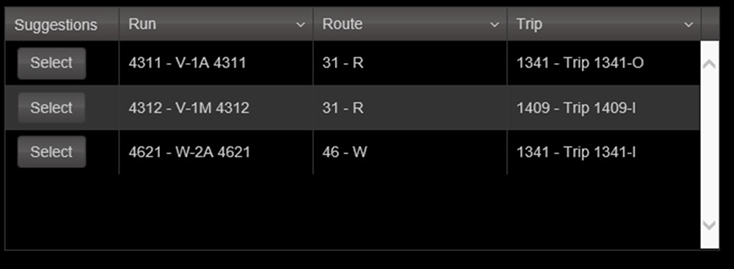

Suggestions

By looking at both schedule and historical data, myAvail can provide suggestions for many exceptions. These suggestions are shown in the Suggestions Grid located in the lower left of the Exceptions tab.

When you select a single record on the Exceptions Grid, the Suggestions Grid displays suggestions that myAvail has found. To correct a record using a suggestion, click Select next to the suggestion.

TIP: myAvail does not automatically save a record after you select a suggestion. Be sure to click on ‘Save’.

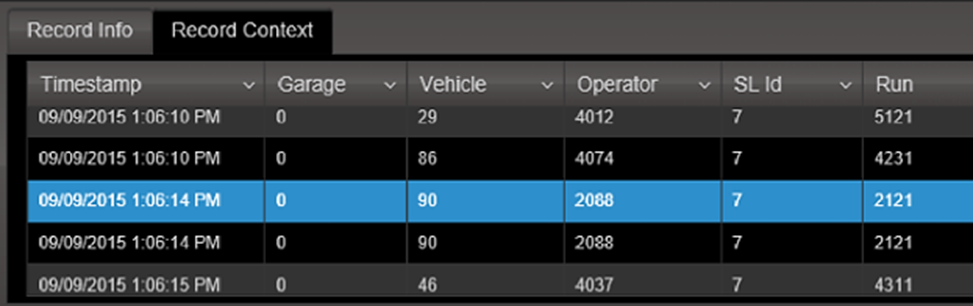

Record Context

The record context displays records that the system received around the same time as the record you selected. The record you selected is highlighted in blue. Records that are exceptions in the current test are highlighted in red.

Record Info

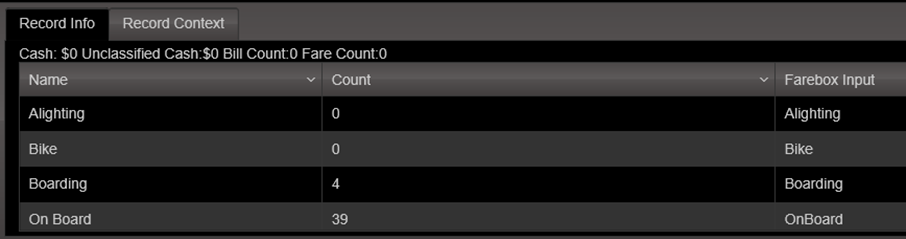

The Record Info grid, located on the tab titled ‘Record Info’ at the bottom right of the Exceptions tab, provides cash counts, fare counts, and farebox inputs for the currently selected record.

Accepting Records

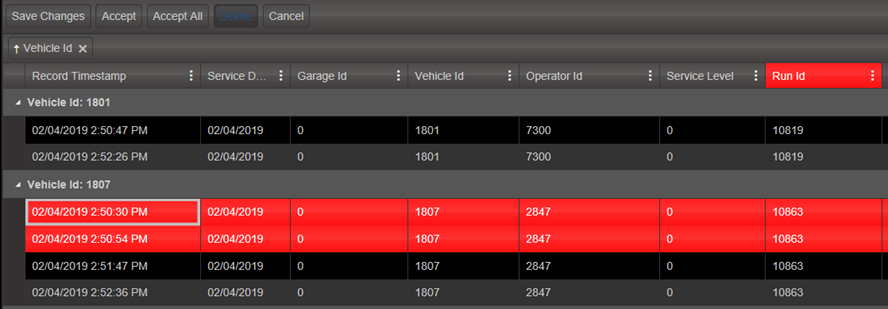

Some tests allow you to ‘Accept’ records. If there is a record that myAvail marks as an exception but you believe it is correct, accept the record to transfer the data over to the Farebox tables without modification. To accept a record, highlight the record(s) that you want to accept and click the Accept button on the toolbar above the grid. The system uses a green highlight to identify the records that you accept, and it will remove them from the exceptions grid the next time changes are saved.

To accept all the records marked as an exception for a test, click Accept All. A prompt asks you to confirm this action to prevent any accidental clicks. Read additional important info here.

Deleting Records

Deleting records works similarly to accepting records. To delete a record, highlight the record(s) that need to be deleted and click the ‘Delete’ button on the toolbar above the grid. The system highlights the records in red and removes them from the exception grid the next time changes are saved.

Other Exceptions Grids

While most of the procedures above apply to the Vehicle ID and Fare Type tests, there are several differences that you should note.

VEHICLE ID TEST

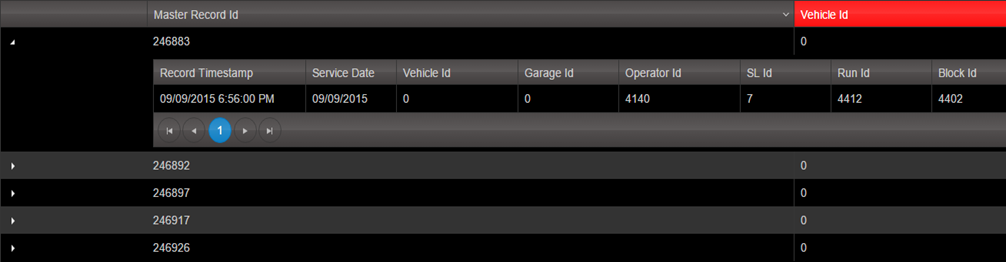

Because a vehicle has many records associated with it, a Vehicle ID exception can comprise several records. Consequently, a Vehicle ID test displays as a single row but has many records under it. To show the records related to a Vehicle ID exception, click the arrow located on the left side of the exception.

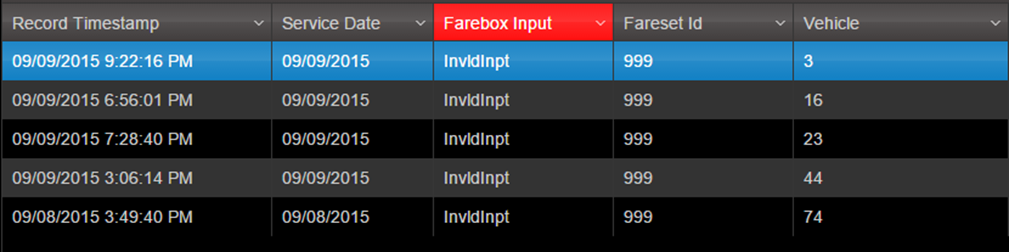

FARE TYPE TEST

Use this test to correct invalid farebox inputs. The Fare Type test works on fare records. In this grid, you can modify only the Farebox Input column.

TIP: The Group Edit option is not available when making Farebox Input corrections.

SERVICE DATE TEST

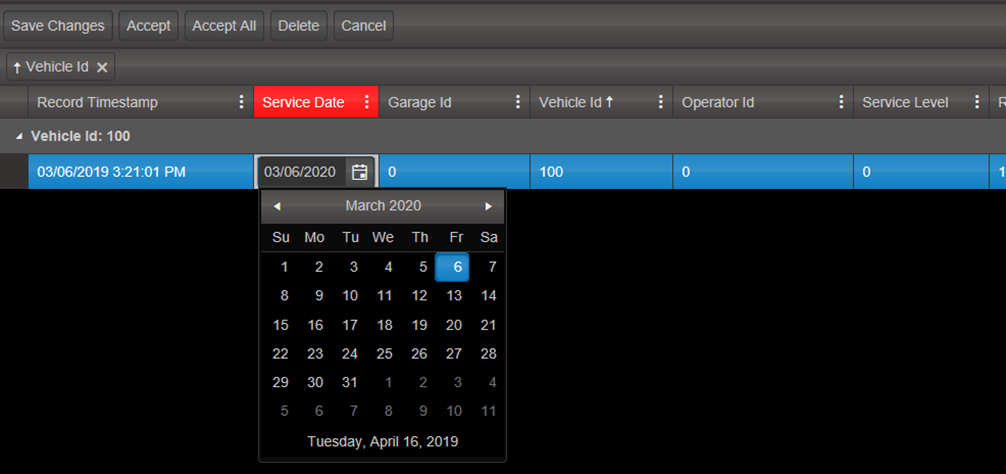

While this grid appears to be the same grid that myAvail uses for many other tests, a crucial difference is that you can modify the Service Date column in this grid. When you modify the Service Date, myAvail updates the SL ID (Service Level ID) to reflect the Service Level that is active on the new Service Date. Unlike the other grid editors, which are drop-down lists, the Service Date editor is a calendar from which you choose a date.

Making Data Ready For Reporting

After all the records have been corrected, myAvail asks if you want to make these data ready for reporting. Click ‘Yes’ to transfer data from the Holding Tanks to the Farebox tables, where the system can include them in reports. This process can take over a minute to complete.

Two errors can prevent myAvail from preparing the records for reporting. The first error, record IDs in the Holding Tank tables already exist in the Farebox tables, is corrected by myAvail automatically. The second type of error, caused by multiple active items sharing  Farebox IDs, cannot be corrected automatically and requires intervention from Avail or a system administrator.

If you decline to make data ready for reporting when the prompt is shown, you can still move data over by clicking Probe Date again.
